Waitsfield's Village Bridge Repairs Near Completion

Google map of Vermont with seal


Waitsfield, Vt., November, 2001 - The Village Bridge has been undergoing repairs for the last few weeks. Traffic has resumed flowing across the old span since the first phase of the work was completed when eight floor beams and the deck planking were replaced.

Work still to be done, explains Jan Lewandoski, owner of Restoration and Traditional Building, is the replacement of some broken timbers in the Burr Arch on the down-stream side and some work on the walkway. There has been a delay in the work on the arch until the right timber was found.

"We replaced several joists that had become rotten, mostly from moisture condensing or traveling down the spikes and lags,"said Lewandoski."To replace the broken arch segments I had to find a large spruce timber with the right natural curvature for the task, but I have it now. I blame the failure [of the arch] on the cantilevered snow loads applied by the walkway added in the 1940's.

"I am also going to rectify the relationship of the floor and roadway at the east end, by jacking the joists and truss slightly, to reduce impact loading.

"This is a remarkable bridge considering the heavy traffic, relatively long span, great age, and largely unaltered form."

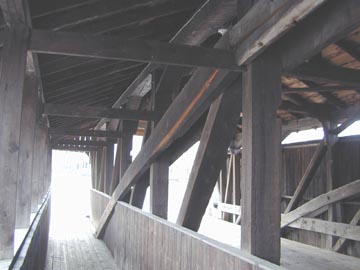

Village Bridge - broken Burr Arch timbers
The broken Burr Arch timbers

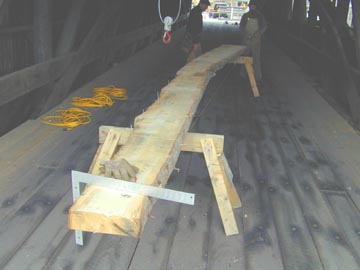

Village Bridge - The specially sought curved-grain Spruce timber
The specially sought curved-grain Spruce timber

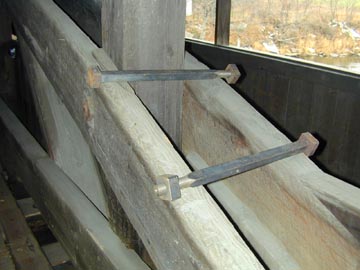

Village Bridge - The new through-bolts
The new through-bolts. Notice the square shanks. These are similar to the hand-forged bolts made in the 1830s
Village Bridge - A view of the cut stone abutments Photo by Joe Nelson

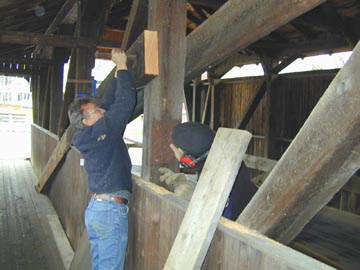

Jan Lewandoski and Mike Cotroneo remove the broken timbers.

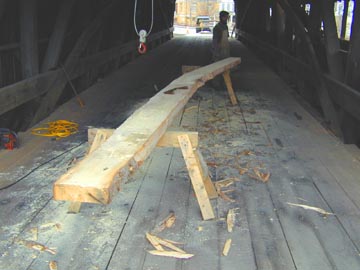

Village Bridge - The curved-grain Spruce timber is shaped and ready to be fit into the Burr- arch
The curved-grain Spruce timber is shaped and ready to be fit into the Burr arch.

[Editor's note: The Village Bridge (WGN 45-12-14) was built in 1833 to span the Mad River using a multiple-kingpost truss with Burr-arch.]
